Fuzzy Logic Introduction & its Applications.

This concept was introduced by Lofti Zadeh in 1965 based on the Fuzzy Set Theory. This concept provides the possibilities which are not given by computers, but similar to the range of possibilities generated by humans.

In the Boolean system, only two possibilities (0 and 1) exist, where 1 denotes the absolute truth value and 0 denotes the absolute false value.

Fuzzy means the things that are vague or not clear. Sometimes, we cannot decide in real life that the given problem or statement is either true or false. Because there are multiple possibilities present between the 0 and 1, which are partially false and partially true. At that time, this concept provides many values between the true and false and gives the flexibility to find the best solution to that problem.

Characteristics of Fuzzy Logic System

1. This concept is flexible and we can easily understand and implement it.
2. It is used for helping the minimization of the logic created by the human.
3. It is the best method for finding the solution of those problems which are suitable for approximate or uncertain reasoning.
4. It always offers two values, which denote the two possible solutions for a problem and statement.
5. It allows users to build or create the functions which are non-linear of arbitrary complexity.
6. In fuzzy logic, everything is a matter of degree.
7. In the Fuzzy logic, any system which is logical can be easily fuzzified.
8. It is based on natural language processing.
9. It is also used by the quantitative analysts for improving their algorithm's execution.
10. It also allows users to integrate with the programming.

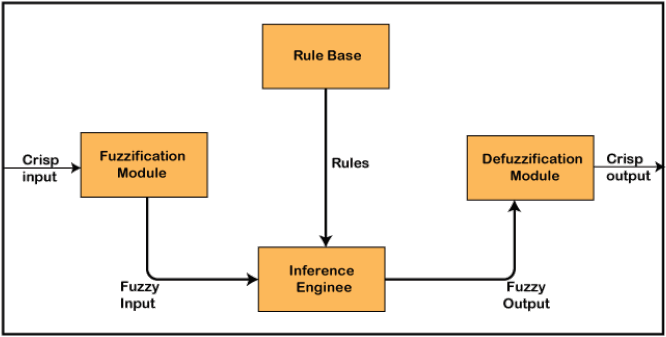

Architecture of Fuzzy Logic systems

In the architecture of the Fuzzy Logic system, each component plays an important role.

The architecture consists of the different four components which are given below.

1. Rule Base
2. Fuzzification
3. Inference Engine
4. Defuzzification

1. Rule Base

Rule Base is a component used for storing the set of rules and the If-Then conditions given by the experts are used for controlling the decision-making systems. There are so many updates that come in the Fuzzy theory recently, which offers effective methods for designing and tuning of fuzzy controllers. These updates or developments decreases the number of fuzzy set of rules.

2. Fuzzification

Fuzzification is a module or component for transforming the system inputs, i.e., it converts the crisp number into fuzzy steps. The crisp numbers are those inputs which are measured by the sensors and then fuzzification passed them into the control systems for further processing. This component divides the input signals into following five states in any Fuzzy Logic system:

• Large Positive (LP)
• Medium Positive (MP)
• Small (S)
• Medium Negative (MN)
• Large negative (LN)

3. Inference Engine

This component is a main component in any Fuzzy Logic system (FLS), because all the information is processed in the Inference Engine. It allows users to find the matching degree between the current fuzzy input and the rules. After the matching degree, this system determines which rule is to be added according to the given input field. When all rules are fired, then they are combined for developing the control actions.

4. Defuzzification

Defuzzification is a module or component, which takes the fuzzy set inputs generated by the Inference Engine, and then transforms them into a crisp value. It is the last step in the process of a fuzzy logic system. The crisp value is a type of value which is acceptable by the user. Various techniques are present to do this, but the user has to select the best one for reducing the errors.

Membership Function

The membership function is a function which represents the graph of fuzzy sets, and allows users to quantify the linguistic term. It is a graph which is used for mapping each element of x to the value between 0 and 1. This function is also known as indicator or characteristics function.

This function of Membership was introduced in the first papers of fuzzy set by Zadeh. For the Fuzzy set B, the membership function for X is defined as: μB:X →[0,1]. In this function X, each element of set B is mapped to the value between 0 and 1. This is called a degree of membership or membership value.

Applications of Fuzzy Logic

Following are the different application areas where the Fuzzy Logic concept is

widely used:

1. It is used in Businesses for decision-making support system.
2.  It is used in Automative systems for controlling the traffic and speed, and for improving the efficiency of automatic transmissions.Automative systems also use the shift scheduling method for automatic transmissions.
3. This concept is also used in the Defence in various areas. Defence mainly uses the Fuzzy logic systems for underwater target recognition and the automatic target recognition of thermal infrared images.
4. It is also widely used in the Pattern Recognition and Classification in the form of Fuzzy logic-based recognition and handwriting recognition. It is also used in the searching of fuzzy images.
5. Fuzzy logic systems also used in Securities.
6. It is also used in microwave oven for setting the lunes power and cooking strategy.
7. This technique is also used in the area of modern control systems such as expert systems.
8. Finance is also another application where this concept is used for predicting the stock  market, and for managing the funds.
9. It is also used for controlling the brakes.
10. It is also used in the industries of chemicals for controlling the ph, and chemical distillation process.
11. It is also used in the industries of manufacturing for the optimization of milk and cheese production.
12. It is also used in the vacuum cleaners, and the timings of washing machines.
13. It is also used in heaters, air conditioners, and humidifiers.

Advantages of Fuzzy Logic

Fuzzy Logic has various advantages or benefits. Some of them are as follows:

1. The methodology of this concept works similarly as the human reasoning.
2. Any user can easily understand the structure of Fuzzy Logic.
3. It does not need a large memory, because the algorithms can be easily described with fewer data.
4. It is widely used in all fields of life and easily provides effective solutions to the problems which have high complexity.
5. This concept is based on the set theory of mathematics, so that's why it is simple.
6. It allows users for controlling the control machines and consumer products.
7. The development time of fuzzy logic is short as compared to conventional methods.
8. Due to its flexibility, any user can easily add and delete rules in the FLS system.

Disadvantages of Fuzzy Logic

Fuzzy Logic has various disadvantages or limitations. Some of them are as

follows:

1. The run time of fuzzy logic systems is slow and takes a long time to produce outputs.
2. Users can understand it easily if they are simple.
3. The possibilities produced by the fuzzy logic system are not always accurate.
4. Many researchers give various ways for solving a given statement using this technique which leads to ambiguity.
5. Fuzzy logics are not suitable for those problems that require high accuracy.
6. The systems of a Fuzzy logic need a lot of testing for verification and validation.
