Instrument & Process Equipment Symbols

In the previous blog, we learn about instrumentation documents overview. In that document's example, we saw types of icons & symbols. In this blog, we will learn about it in detail.

If you haven't seen the previous blog, then click down below:

Instrumentation Documents Overview

As per PFD, P&ID, and other documents, there is variation in lines, equipment symbols, valve types, measurement devices, symbols for functional diagrams, etc.

Line Types :

Process/Instrument Line connections :

Instrument Bubbles :

Process Valve Types :

Valve Actuator Types :

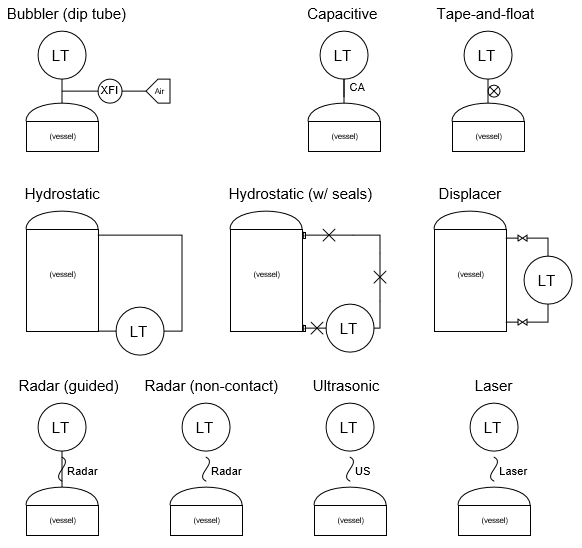

Liquid Level Measurement Devices :

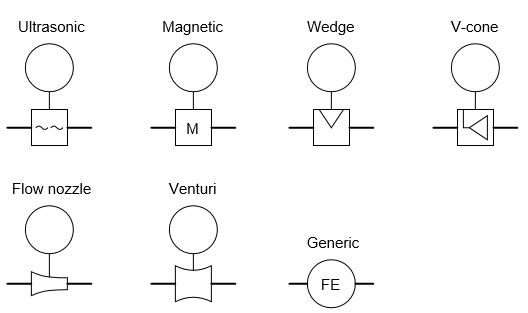

Flow Measurement Devices (flowing left-to-right) :

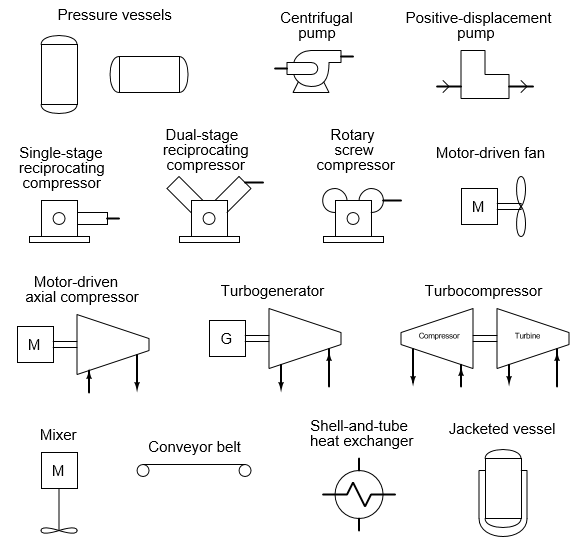

Process Equipment :

Functional Diagram Symbols :

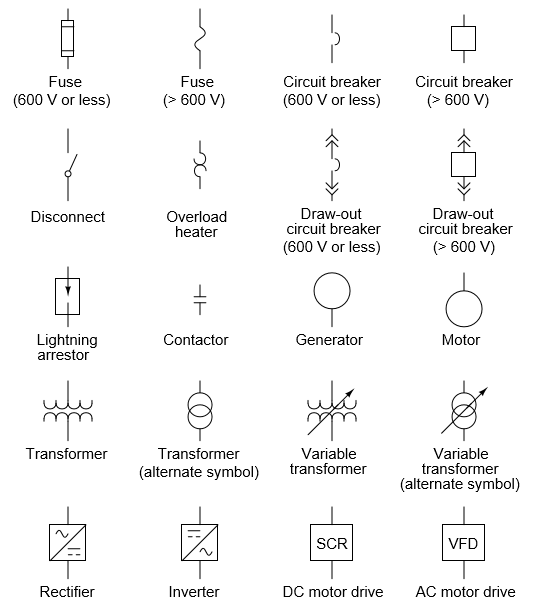

Single-Line Electrical Diagram Symbols :

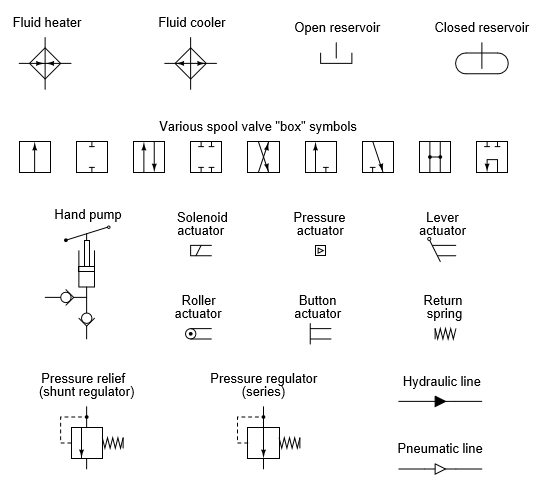

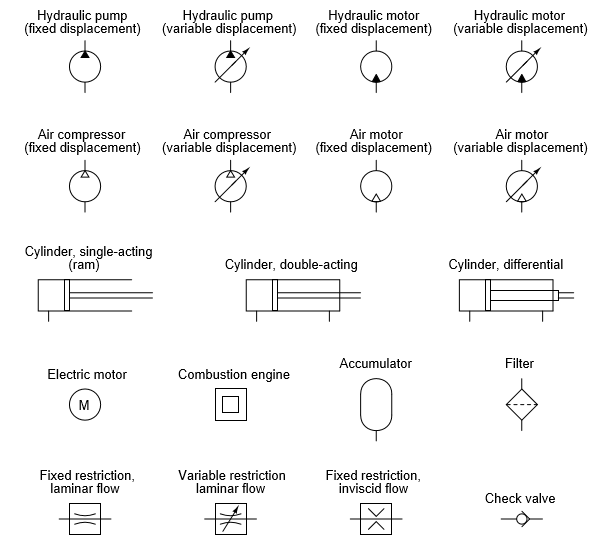

 Fluid Power Diagram Symbols :

That's it for this blog.
Thanks & Keep Learning.
